Thick Wall Injection Molding: Enhancing Strength and Efficiency in Manufacturing

There are many different sectors that rely heavily on the specialized method of thick wall injection molding. These industries include the automobile industry as well as the consumer products industry. This piece of writing is to serve as a comprehensive guide to learning and putting into practice the techniques involved in thick wall injection molding. We are going to investigate the principles, process details, design guidelines, material selection, quality control, case studies, and future trends that are related with this sophisticated manufacturing approach.

I. Fundamentals of Thick Wall Injection Molding:

The process of thick wall injection molding is a highly precise and efficient method that includes injecting molten thermoplastic materials into a mold cavity in order to create components that have a large wall thickness throughout their whole. When using this method, there are a number of special obstacles that must be overcome, such as ensuring that the material flows correctly, managing cooling times, and eliminating flaws. The choice of material is quite important when taking into consideration the requirements of the end product in terms of its general functioning, as well as its strength and durability.

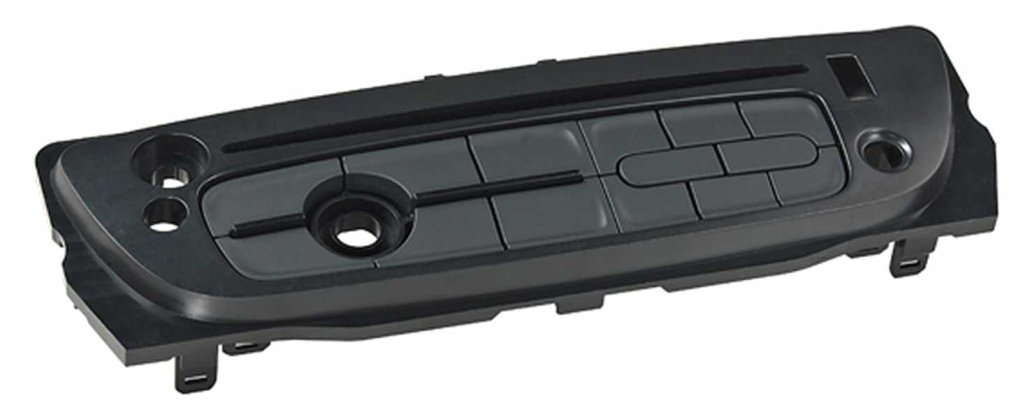

Thick wall injection molding

II. Thick Wall Injection Molding Process:

With thick wall injection molding, you can make plastic parts with walls that are thicker than most parts. This method is often used in areas where parts need to be strong and last a long time, like aerospace and cars. The process of thick wall injection molding will be talked about in great detail in this blog post. It will explain how it works, why it’s useful, and list some popular industries that use it.

Making a plan for the part that needs to be made is the first step in thick wall injection molding. CAD software is often used to make the design. This software lets the artist make a 3D model of the part that is very accurate. An injection molding machine can use the plan after it has been turned into a computer file.

The next step in the process is to make the cast. As a mix of CNC machining and EDM (electrical discharge machining), the mold is made. The cast is usually made of metal or steel. These are the high temperatures and pressures that are used in injection casting. The mold is made to handle them.

When it’s done, the model is put on the machine that does injection molding. The machine heats up the plastic and then pushes it hard into the mold to make it melt. Polyurethane resin is poured into the mold and left to cool and set. After the part has cooled, the mold is opened and the part is pushed out of it.

Making strong parts that last a long time is one of the best things about thick wall injection molding. Because the walls of the parts are thick, they are less likely to bend or break. This is useful in fields where parts are stressed and strain a lot. This method also lets you make parts with complicated shapes and features, which might not be possible with some other methods.

It is used a lot in medical goods, aerospace, and cars, among other things. Thick wall injection molding is used by people who work in the auto business to make bumpers, dashboards, and interior trim. There is a business that uses this method to make parts for inside planes, like overhead bins and seat parts. Some medical tools, like syringes, IV connectors, and surgery tools, have parts that are made with thick wall injection molding.

If you want to make strong plastic parts that last a long time, thick wall injection molding is a useful and flexible method. Parts with thick walls and complicated forms can be made with this method. Because of this, it works great in areas where parts need to be strong and able to handle a lot of stress. If manufacturers know how thick wall injection molding works and what its benefits are, they can make parts that meet their companies’ strict needs.

III. Design Guidelines for Thick Wall Injection Molding:

Thick wall injection molding is used to manufacture components with thicker walls. When employing thick wall injection molding, gate design must be considered to ensure product quality and integrity. We’ll cover thick wall injection molding design basics here.

  1. Wall Thickness Designing for thick wall injection molding prioritizes wall thickness. Keep the part’s wall thickness consistent to distribute material evenly during molding. Warping, sink marks, and voids can develop from unequal wall thickness. Wall thickness should be 2–4 millimeters for best results.
  2. Rib Pattern Ribs strengthen and prevent wall deformation. Design thick wall injection molding ribs to be 60–80% of the wall thickness and half the wall height. This ensures that the ribs provide enough support without sink marks.
  3. Corner Radii Sharp corners might cause stress concentration and failure. Design thick wall injection molded components with rounded corners to reduce stress and increase strength. Thick-walled parts need 0.5 mm corner radius.
  4. Draft Angles For easy part ejection from mold, draft angles are necessary. Thicker wall injection molding parts with proper draft angles eject smoothly and without sticking. Draft angles should be one to three degrees for thick walls.
  5. The gate that lets molten plastic into the mold is the fifth design factor. Thick wall injection molding requires gates that fill cavities without causing pressure or shear stress. For thick barriers, multiple gates may be needed to distribute material uniformly.
  6. HVAC To eliminate sink marks, warping, and inconsistent thickness, walls must be adequately chilled. A well-designed cooling system will cool thick wall injection molded parts rapidly and evenly. To adjust mold temperature, cooling tubes or other cooling devices can be used.

Finally, high-quality, structurally sound thick-wall injection molding requires tight design criteria. These rib design, corner radii, draft angles, gate design, and cooling system guidelines help manufacturers make thick-walled, high-quality products. Thick wall injection molding projects require careful design and execution.
