What is Metal Injection Molding

Metal injection molding (MIM) is a manufacturing process that combines the benefits of plastic injection molding with the strength and durability of metal. MIM is a highly efficient and cost-effective method of producing complex metal parts with tight tolerances and intricate geometries.

This process has been around for over 40 years and has become increasingly popular in recent years due to advancements in technology and materials. In this article, we will explore the process of metal injection molding, the materials used, its applications, limitations, and the future of this manufacturing process.

A. Definition of Metal Injection Molding

Metal injection molding (MIM) is a manufacturing process that involves the injection of a metal powder and binder mixture into a mold cavity to produce complex metal parts. The mixture is then debound and sintered to create a solid metal part that is near-net shape. MIM is a highly precise and efficient method of producing metal parts with tight tolerances, complex geometries, and excellent surface finishes.

B. Brief History of Metal Injection Molding

The metal injection molding process was first developed in the 1970s as a way to produce small, complex metal parts. The process was initially used to produce parts for the watch and jewelry industry, but it quickly expanded into other industries such as medical, aerospace, and automotive. In the early days of MIM, the process was limited to producing small parts due to the limitations of the technology and materials. However, with advancements in technology and materials, MIM has become a viable solution for producing larger and more complex metal parts.

C. Advantages of Metal Injection Molding

MIM has several advantages over traditional manufacturing processes such as machining and casting. Some of the key advantages of MIM include:

1. High Precision: MIM is capable of producing parts with tight tolerances and intricate geometries.


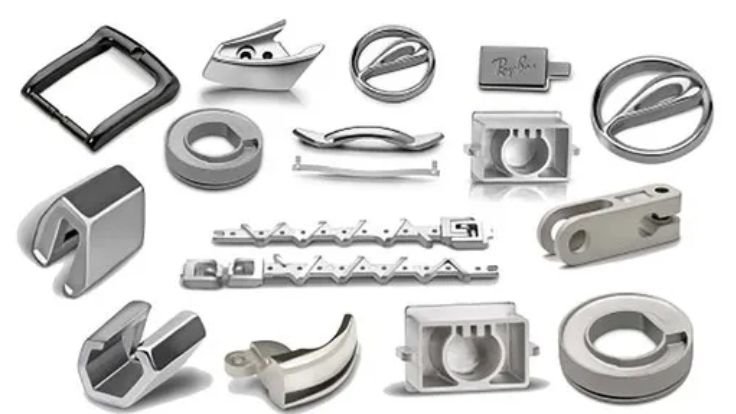

   Metal Injection molding

2. Cost-Effective: MIM is a highly efficient and cost-effective method of producing complex metal parts.
3. Material Flexibility: MIM can produce parts from a wide range of metals, alloys, ceramics, and composites.
4. Reduced Waste: MIM produces near-net shape parts, which means there is less material waste compared to traditional manufacturing processes.
5. Excellent Surface Finish: MIM produces parts with excellent surface finishes, which eliminates the need for additional finishing processes.

II. Process of Metal Injection Molding

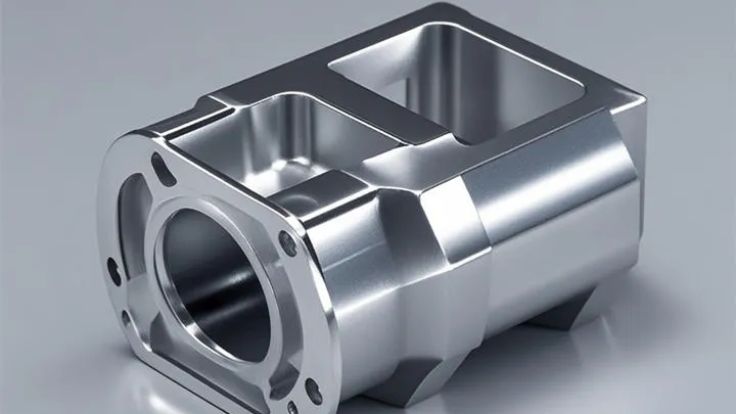

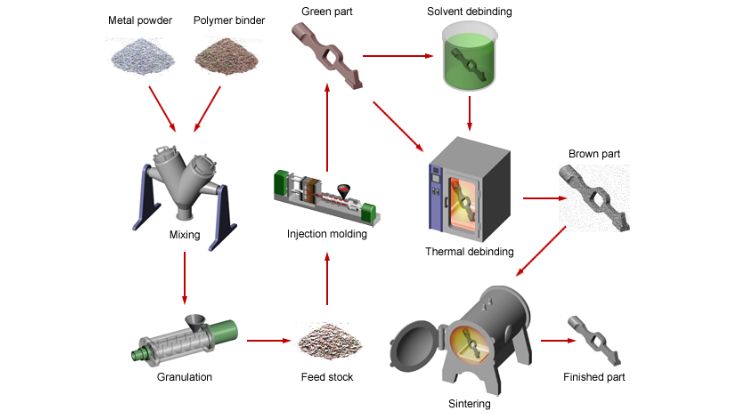

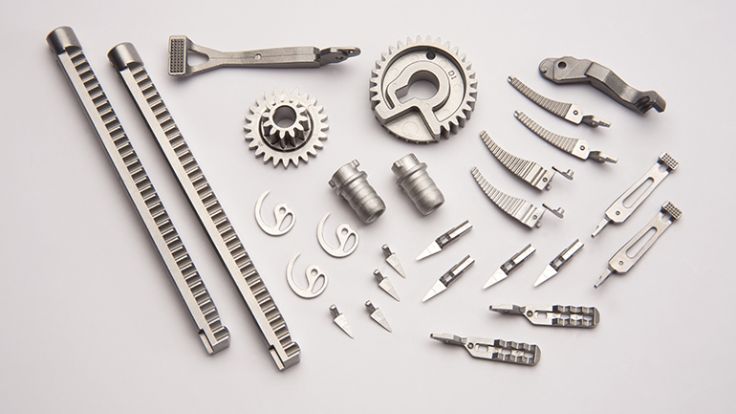

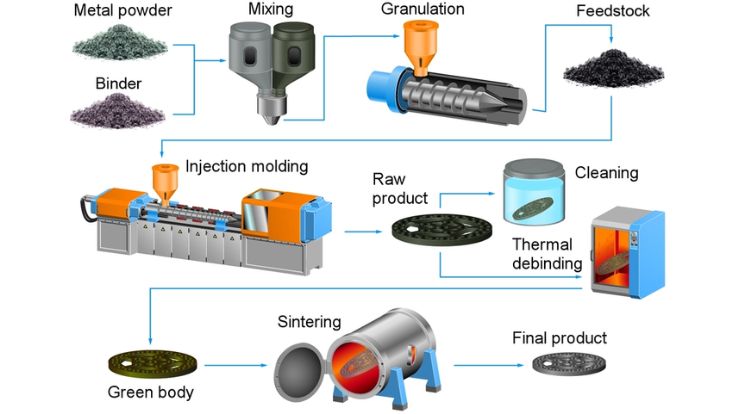

The metal injection molding process consists of four main steps: feedstock preparation, injection molding, debinding, and sintering.

A. Feedstock Preparation

The first step in the MIM process is to prepare the feedstock. The feedstock is a mixture of metal powder and binder that is used to create the part. The metal powder is typically made from a metal or alloy that has been finely ground into a powder. The binder is a mixture of polymers and other materials that are used to hold the metal powder together.

The metal powder and binder are mixed together in a high-intensity mixer to create a homogeneous mixture. The mixture is then granulated into small pellets, which are then dried to remove any moisture.

B. Injection Molding

The next step in the MIM process is injection molding. The feedstock pellets are loaded into an injection molding machine, which heats the pellets and injects them into a mold cavity. The mold cavity is typically made from tool steel and is designed to create the desired shape of the part.

The injection molding machine applies pressure to the feedstock pellets, which causes them to flow into the mold cavity. The pressure is maintained until the feedstock has solidified, and the part has taken the shape of the mold cavity.

C. Debinding

The third step in the MIM process is debinding. The part that is produced from the injection molding process is still in a green state and contains the binder that was used to hold the metal powder together. The debinding process involves removing the binder from the part to create a porous metal part.

The debinding process involves heating the part in a furnace to a temperature that is high enough to remove the binder but not high enough to sinter the metal powder. The binder is removed through a process of evaporation and combustion, leaving behind a porous metal part.

D. Sintering

The final step in the MIM process is sintering. Sintering involves heating the porous metal part in a furnace to a temperature that is high enough to fuse the metal powder together but not high enough to melt it. The sintering process causes the metal powder to fuse together, creating a solid metal part.

The sintering process also causes the part to shrink slightly, which is taken into account during the design stage. The final part is then ready for any additional finishing processes, such as polishing or plating.

III. Materials Used in Metal Injection Molding

MIM can produce parts from a wide range of metals, alloys, ceramics, and composites. Some of the most commonly used materials in MIM include:

A. Metals

MIM can produce parts from a wide range of metals, including stainless steel, titanium, copper, and aluminum. The metal powders used in MIM are typically made by atomizing the metal using a gas or water spray.

B. Alloys

MIM can also produce parts from a wide range of alloys, including nickel-based alloys, cobalt-based alloys, and iron-based alloys. Alloys are typically used in MIM when the part requires specific mechanical or chemical properties.

C. Ceramics

MIM can produce parts from a wide range of ceramics, including zirconia, alumina, and silicon nitride. Ceramics are typically used in MIM when the part requires high strength, wear resistance, or thermal properties.

D. Composites

MIM can also produce parts from a wide range of composites, including metal matrix composites and ceramic matrix composites. Composites are typically used in MIM when the part requires a combination of properties such as high strength and wear resistance.

IV. Applications of Metal Injection Molding

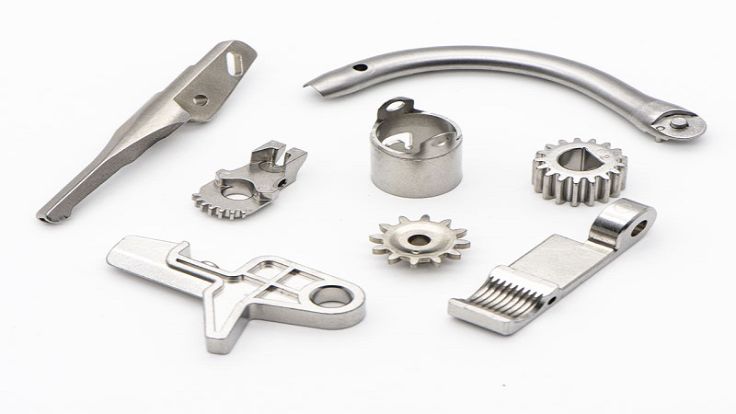

MIM has a wide range of applications in various industries, including medical and dental instruments, aerospace and defense components, automotive parts, and electronics and telecommunications devices.

A. Medical and Dental Instruments

MIM is used to produce a wide range of medical and dental instruments such as surgical tools, dental implants, and orthopedic implants. MIM is ideal for producing these types of parts because they require high precision, complex geometries, and biocompatibility.

B. Aerospace and Defense Components

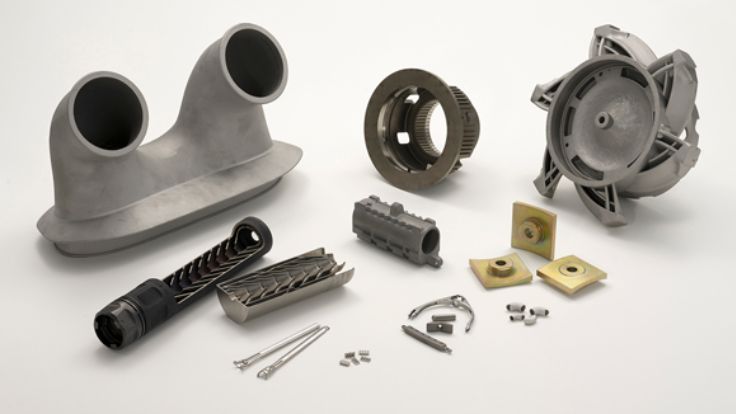

MIM is used to produce a wide range of aerospace and defense components such as fuel injectors, turbine blades, and missile components. MIM is ideal for producing these types of parts because they require high strength, corrosion resistance, and complex geometries.

C. Automotive Parts

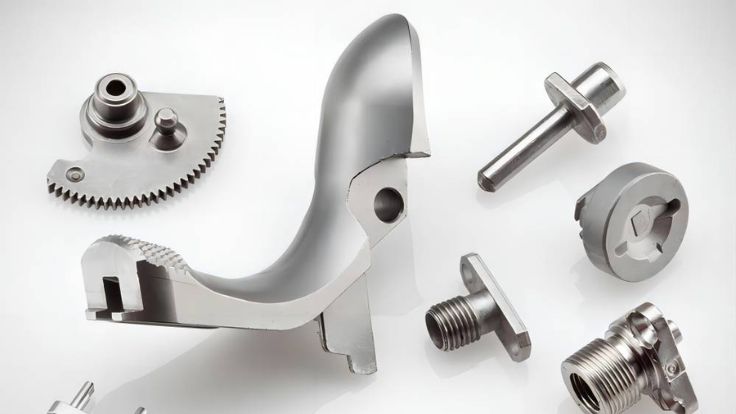

MIM is used to produce a wide range of automotive parts such as gears, bearings, and brake components. MIM is ideal for producing these types of parts because they require high strength, wear resistance, and complex geometries.

D. Electronics and Telecommunications Devices

MIM is used to produce a wide range of electronics and telecommunications devices such as connectors, sensors, and antennas. MIM is ideal for producing these types of parts because they require high precision, complex geometries, and excellent surface finishes.

V. Limitations of Metal Injection Molding

While MIM has several advantages over traditional manufacturing processes, there are also some limitations to the process.

A. High Initial Costs

The initial costs of setting up a MIM operation can be high, including the cost of the injection molding machine, tooling, and feedstock preparation equipment.

B. Limited Material Selection

While MIM can produce parts from a wide range of materials, the selection is still limited compared to other manufacturing processes.

C. Limited Part Size

MIM is best suited for producing small to medium-sized parts. Larger parts may require a different manufacturing process.

D. Complex Geometries May Be Difficult to Achieve

While MIM is capable of producing complex geometries, some designs may be difficult to achieve due to the limitations of the injection molding process.

VI. Future of Metal Injection Molding

The future of metal injection molding looks promising, with advancements in technology and materials. Some of the potential areas of growth for MIM include:

A. Advancements in Technology

Advancements in technology, such as 3D printing and robotics, are likely to have a significant impact on the MIM process. These technologies could make the process more efficient and cost-effective.

B. Increased Demand for Complex Parts

As industries continue to demand more complex and precise parts, MIM is likely to become an increasingly popular manufacturing process.

C. Expansion into New Industries

MIM is likely to expand into new industries as the benefits of the process become more widely known. Industries such as renewable energy and consumer goods could benefit from the use of MIM.

D. Potential for Sustainability

MIM has the potential to be a sustainable manufacturing process due to the reduced waste and energy consumption compared to traditional manufacturing processes.

VII. Conclusion

Metal injection molding is a highly efficient and cost-effective method of producing complex metal parts with tight tolerances and intricate geometries. The process has been around for over 40 years and has become increasingly popular in recent years due to advancements in technology and materials.

MIM can produce parts from a wide range of materials and has applications in various industries, including medical, aerospace, automotive, and electronics. While there are some limitations to the process, the future of MIM looks promising, with advancements in technology and materials.
